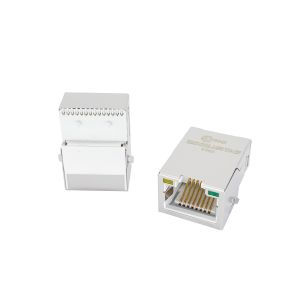

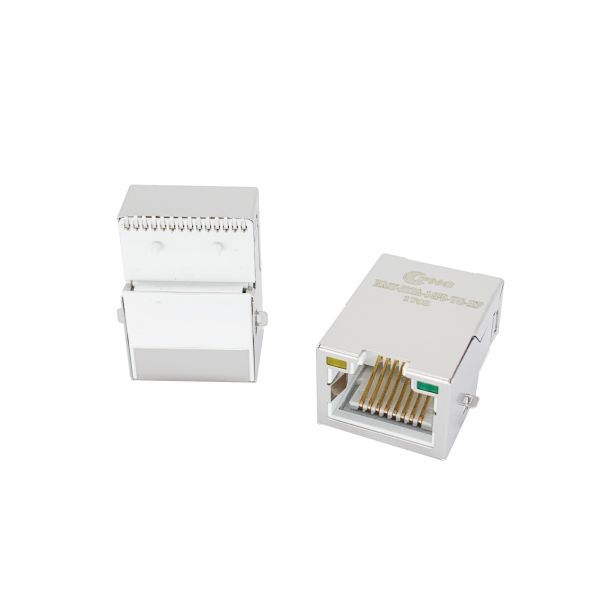

Length=21.6mm sunk PCB, SMT with 100M/1000M transformer

Feature:

. Compliant with IEEE802.3af standard including 350mH OCL with 11mA DC Bias

. Intergrated Mag-modular design provides higher reliabilityand conserves minimizing PCB space

. Housing: Thermoplastic LCP UL94V0 rated,Black

. Contact :Phosphor Bronze C5191,Gold plated on content area 6u" Min

. Input Terminal : B rass(C2680)

. Metal shielding:Copper alloy with Nickel plated(C2680),

. Different color of LEDs option available

. Operating temperature: 0 C to +75 C

. Resistance to soldering heat:255℃ for 5seconds,

and only for reflow soldering process.

Electrical Specifications: (25 C)

1. Turns Ratio: TX & Rx= 1:1±5% 2. Insertion Loss: @1~100MHz : -1.0dB Max 3. Return Loss: @1~10MHz : -20dB Min @30MHz : -16dB Min @ 60~80MHz : -12dB Min

4. Common Mode Rejection: @1~50MHz: -30dB Min @50~100MHz: -20dB Min 5. Crosstalk: @30~60MHz : -35dB Min @60~100MHz : -30dB Min 6. OCL: @100KHz, 0.1V 11mADC : 350uH Min 7. Hi-Pot : 2250VDC, 1mA, 1Sec
